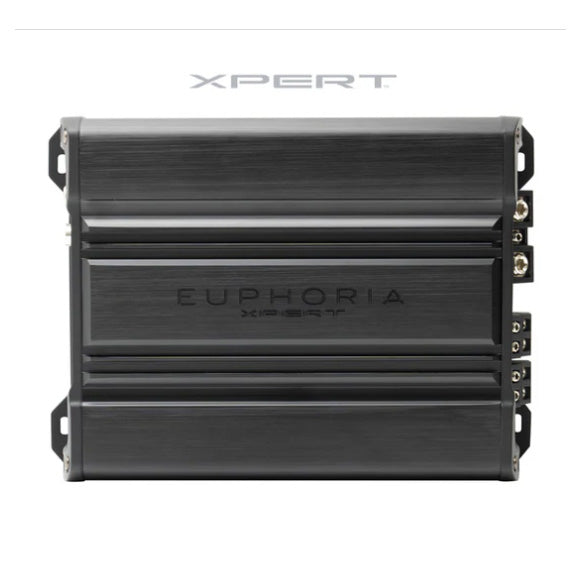

EX200.4 : 4 Channel Full Range Class D Amplifier

Achieve superior audio performance with the XPERT EX200.4 4-channel Class D amplifier, engineered for high output in a compact design—ideal for motorcycle and space-limited applications. Capable of powering high-performance tweeter, compression drivers, and midranges with ease. Key Features: • Power Output: 200W x 4 at 4 ohms and 300W x 4 at 2 ohms for dynamic sound performance. • High-pass, band-pass, and low-pass filters for precise speaker tuning. • Integrated cooling fan ensures consistent power and prevents overheating. • Real-time clipping monitoring safeguards against overdriving and damage. • Large-gauge terminals: Supports large gauge wiring for maximum power delivery and efficiency. The XPERT EX200.4 combines power, precision, and reliability for a next-level audio experience.

Features

1. ◦ 4 Channel Class D Circuitry
2. ◦ ACT - Adaptive Crossover Technology
3. ◦ High efficiency Full Range Class D Technology
4. ◦ Direct Connect Speaker Terminals
5. ◦ Large Gauge Power Wire Inputs
6. ◦ APC - Audio Protection Circuit
7. ◦ SESI - Signal evaluation status indicator

Specifications

@14.4 Volts - 1% THD

• 4 x 200 Watts @ 4 Ohm

• 4 x 300 Watts @ 2 Ohm
• 2 x 400 Watts @ 4 Ohm (Bridged)

• Working Voltage: 10 - 16 Volts

• Frequency Response: 10Hz - 20KHz

• Signal to Noise Ratio: < 95dB

• Damping Factor @ 4 Ohm > 101/1KHz

• Low Level Input: 6V - 0.2V

• Ch 1/2 High Pass Filter Variable: 20Hz - 5KHz

• Ch 1/2 Low Pass Filter Variable: 50Hz - 5KHz

• Ch 3/4 High Pass Filter Variable: 20Hz - 5KHz

• Ch 3/4 Low Pass Filter Variable: 50Hz - 5KHz

• Minimum Working Impedance: 2 Ohm Stereo

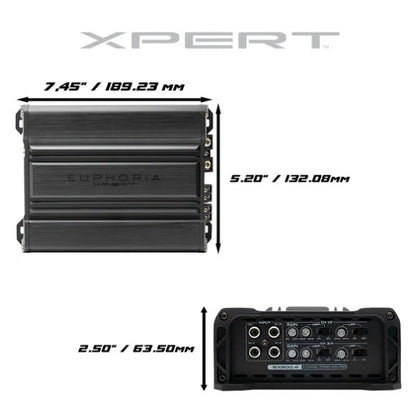

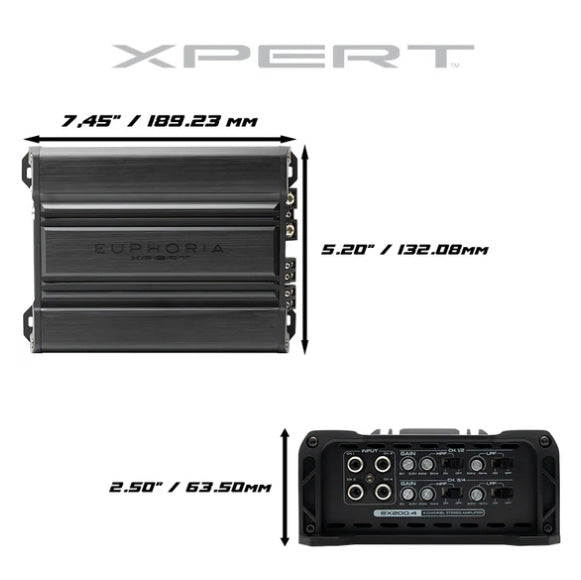

DIMENSIONS

• L - 7.45"/ 189.23 mm
• W - 5.20"/ 132.08 mm

• H - 2.50"/ 63.50 mm
