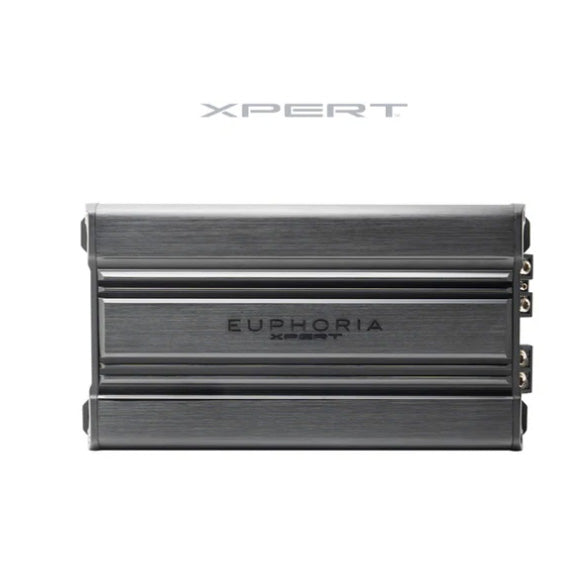

EX3000.1 : Full Range Class D Monoblock Amplifier

Achieve superior audio performance with the XPERT EX3000.1 full-range mono Class D amplifier, engineered for high output in a compact design—ideal for motorcycle and space-limited applications. Capable of powering high-performance compression drivers, midbass drivers, or subwoofers with ease. Key Features: • Power Output: 3000W x 1 at 1 ohm and 1500W x 1 at 2 ohms for dynamic sound performance. • High-pass, band-pass, and low-pass filters for precise speaker tuning. • Integrated cooling fan ensures consistent power and prevents overheating. • Real-time clipping monitoring safeguards against overdriving and damage. • Large-gauge terminals: Supports large gauge wiring for maximum power delivery and efficiency. The XPERT EX3000.1 combines power, precision, and reliability for a next-level audio experience.

Features

• ◦ ACT - Adaptive Crossover Technology
• ◦ High Efficiency Full Range Class D Technology
• ◦ Direct Connect Speaker Terminals
• ◦ Large Gauge Power Wire Inputs
• ◦ APC - Audio Protection Circuit
• ◦ SESI - Signal evaluation status indicator

Specifications

@14.4 Volts - 1% THD

• 1 x 3000 Watts @ 1 Ohm
• 1 x 1500 Watts @ 2 Ohm
• 1 x 750 Watts @ 4 Ohm

• Working Voltage: 10 - 16 Volts

• Frequency Response: 10Hz - 20KHz

• Signal to Noise Ratio: < 95dB

• Damping Factor @ 4 Ohm > 53/ 1KHz

• Low Level Input: 6V - 0.2V

• High Pass Variable Filter Ranges: 20Hz - 800Hz / 200Hz - 8KHz

• Low Pass Variable Filter Ranges: 50Hz - 800Hz / 500hz - 8KHz

• Minimum working Impedance: 1 Ohm

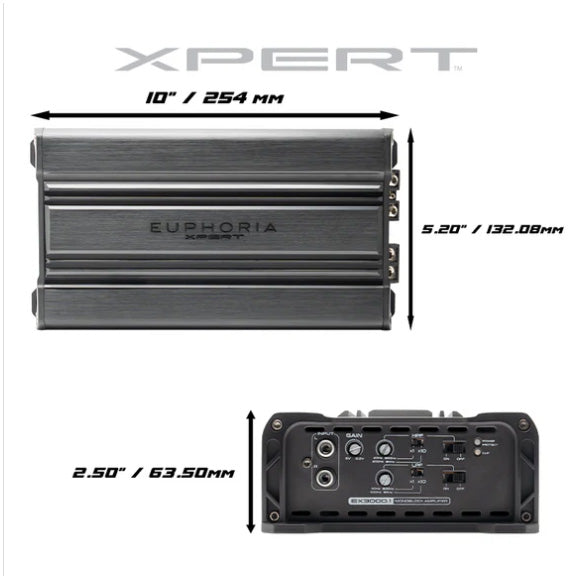

DIMENSIONS

• L - 10" / 254 mm

• W - 5.20" / 132.08 mm

• H - 2.50" / 63.50 mm
