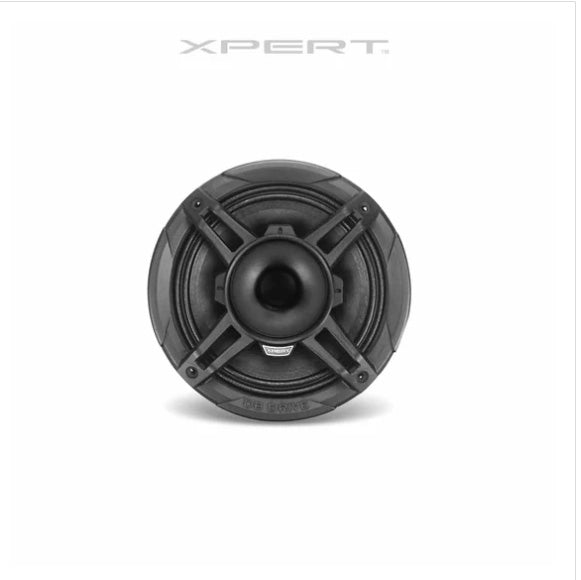

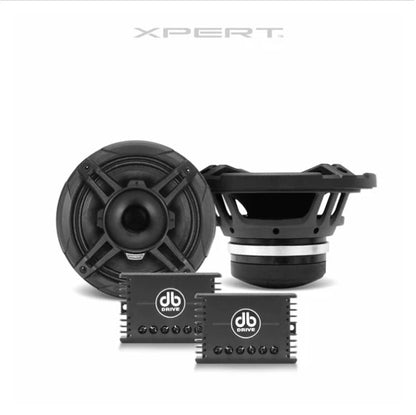

EX6NCD : 6.5 in. 2-Way NEO Loudspeaker W/ Back Mounted Compression Driver
EX6NCD : 6.5 in. 2-Way NEO Loudspeaker W/ Back Mounted Compression Driver
Couldn't load pickup availability
Turn up the volume with XPERT's EX6NCD: The Speaker That Speaks Volumes! Introducing the EX6NCD from XPERT – a 6.5-inch marvel that redefines what it means to experience sound. With its neodymium ring magnet assembly and rear-mounted full-sized compression driver, this speaker delivers unparalleled audio clarity and power. The IP52 rated paper cone with treated cloth surround ensures durability, while the die-cast aluminum basket with radial venting keeps everything cool under pressure. The 1.4” polyester tweeter diaphragm and wide dispersion conical HF waveguide guarantee a broader soundstage, making every note and beat come alive. Plus, with an impressive frequency response from 80Hz to 20KHz and a 2” voice coil, the EX6NCD is engineered for excellence. Whether you're a casual listener or an audiophile, this high-efficiency loudspeaker will elevate your audio experience to new heights.
Features
- 2″ (51mm) Midrange Voice Coil
- Neodymium Ring Magnet Assembly
- Rear Mounted Full Sized Compression Driver
- IP52 Rateed Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
- 1.4″ (36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide
- 12dB Passive Crossover Included
- Protective Grills Included
Specification
| Resonant Frequency (fs) | 61.2Hz |
|---|---|
| D.C. Voice Coil Resistance (Re) | 5.2Ω |
| Mechanical Quality Factor (Qms) | 4.82 |
| Electrical Quality Factor (Qes) | 0.32 |
| Total Quality Factor (Qts) | 0.30 |
| Compliance Equivalent Volume (Vas) | 6.3L |
| Mechanical Compliance (Cms) | 0.28 mm/N |
| Nominal Impedance | 5.2Ω |
| Power Handling | 400 Watts |
| Dynamic Wattage | 800 Watts |
| Sensitivity (1w/1m) | 105.7 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
