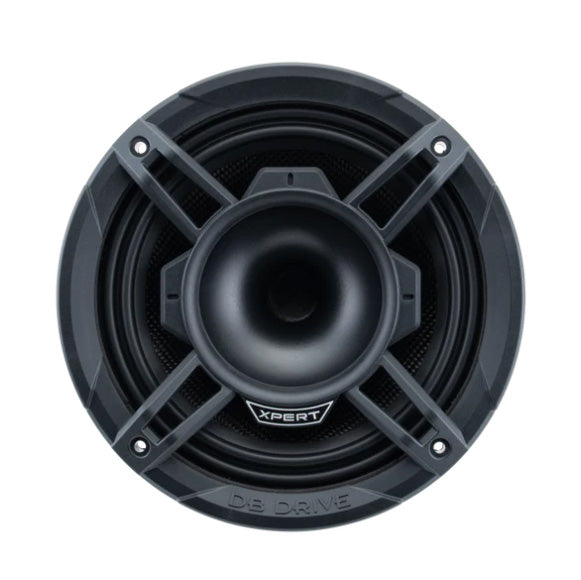

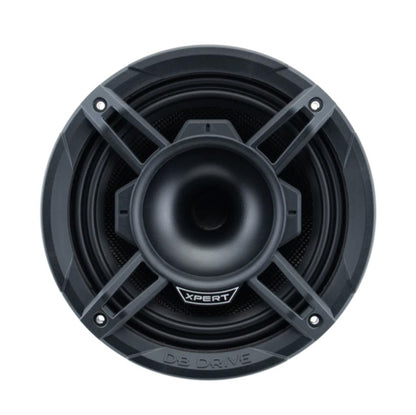

EX8NCD-CF : 8 in. 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver

EX8NCD-CF : 8 in. 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver

Regular price $998.98 USD
Regular price Sale price $998.98 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Turn up the XPERT-ise in your audio experience! Introducing the XPERT EX8NCD-CF: the ultimate 8-inch NEO Mid Speaker with Compression Driver and Passive Crossover. This speaker is designed to revolutionize your audio setup with its cutting-edge features. Boasting a powerful neodymium magnet assembly and a rear-mounted full-sized compression driver, it delivers crystal-clear sound with wide dispersion thanks to the conical HF waveguide. The IP54-rated weather-resistant carbon fiber cone ensures durability, while the 1.4” polyester tweeter diaphragm adds a touch of sophistication to your high frequencies. With a frequency response of 50Hz to 20KHz and an impedance of 4Ω, this speaker is engineered to provide an immersive sound experience. The die-cast aluminum basket with radial venting keeps your speaker cool, even during intense sessions. Plus, the included protective grills and 12dB passive crossover make installation a breeze. Elevate your sound system with the XPERT EX8NCD-CF and experience the pinnacle of audio innovation.

Features

  • 8″ 2-Way Carbon Fiber Loudspeaker
  • 2.0″ (51mm) Midrange Voice Coil
  • 10 Neodymium Ring Magnet Assembly

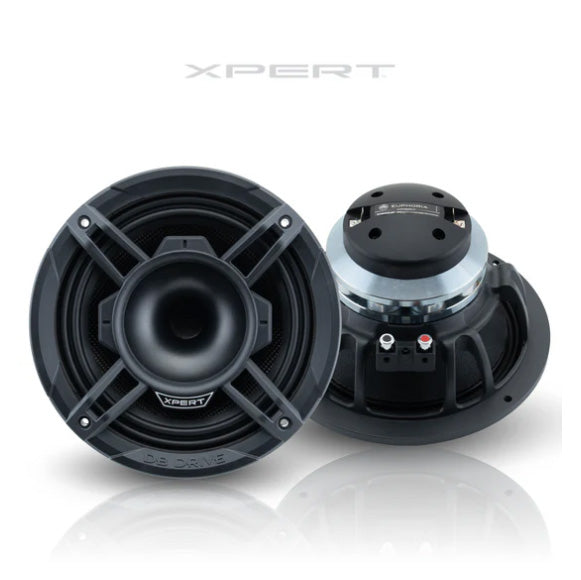

  • Rear Mounted Full Sized Compression Driver
  • IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
  • Die-Cast Aluminum Basket with Radial Venting
  • 1.4″(36mm) Polyester Tweeter Diaphragm
  • Wide Dispersion Conical HF Waveguide
  • 12dB Passive Crossover Included
  • Protective Grills Included

Specifications

Resonant Frequency (fs) 66.2Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 6.16
Electrical Quality Factor (Qes) 0.47
Total Quality Factor (Qts) 0.44
Compliance Equivalent Volume (Vas) 18.1L
Mechanical Compliance (Cms) 0.27 mm/N
Nominal Impedance
Power Handling 450 Watts
Dynamic Wattage 900 Watts
Sensitivity (1w/1m) 105.7 dB
Voice Coil Diameter 2.0″ (51mm)
