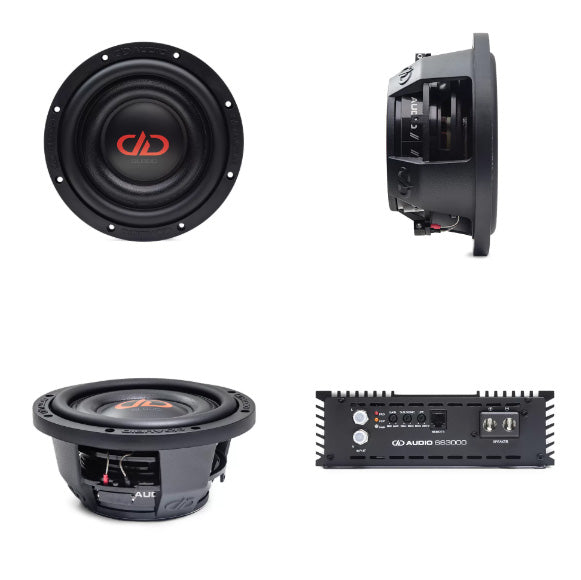

SL608: 300w – 8 Inch Slim Hi-Def Tuned Subwoofer

The new SL608 opens new opportunities in achieving great sound in space limited applications. The cast 8 inch DD frame houses a full size 134mm OD motor with a 25mm thick magnet combined with a deep bump back plate with 12mm Xmax. This state of the art subwoofer pushes 38mm excursion from a minimal 3.5 inch mounting depth.

The triple layer composite sandwich cone is coupled to a Santoprene rubber surround to give low distortion output in the most discerning sound quality applications. Following the standard DD AUDIO procedure, cutting-edge components are combined with state of the art engineering to create new standards in making the best sound systems possible. The new SL608 is the latest in a long line of excellent audio tools to unleash creative imagination in audio engineering.

Specifications

• Speaker Size (In):8
• Watts RMS:300
• Peak Power:900
• VCD (In):2
• Voice Coil Impedance:D2 / D4
• Piston Diameter (In):6.5
• dBSPL:84
• Fs (Hz):34
• Qms:5.139
• Qes:0.432
• Qts:0.398
• Vas (Ltr):13.106
• Xmech (MM):38
• Xmax (MM):12
• Frame OD (In):8.31
• Frame OD (MM):211.074
• Frame OD w/ Gasket (In):8.5
• Frame OD w/ Gasket (MM):215.9
• Mounting Diameter (In):7.37
• Mounting Diameter (MM):187.198
• Mounting Depth (In):3.5
• Mounting Depth (MM):88.9
• Motor Diameter (In):5.276
• Motor Diameter (MM):134.0104
• Motor Depth (In):1
• Motor Depth (MM):25.4
• Magnet Weight (Oz):50
• Magnet Weight (Gm):1417.48
• Displacement (CuFt):0.04
• Displacement (Ltr):1.133
• Sealed Enclosure (CuFt):0.30 – 0.70
• Sealed Enclosure (Ltr):8.495 – 19.822
• Ported Enclosure (CuFt):0.4 – 1.0
• Ported Enclosure (Ltr):11.327 – 28.317
• Weight (Lbs):11
