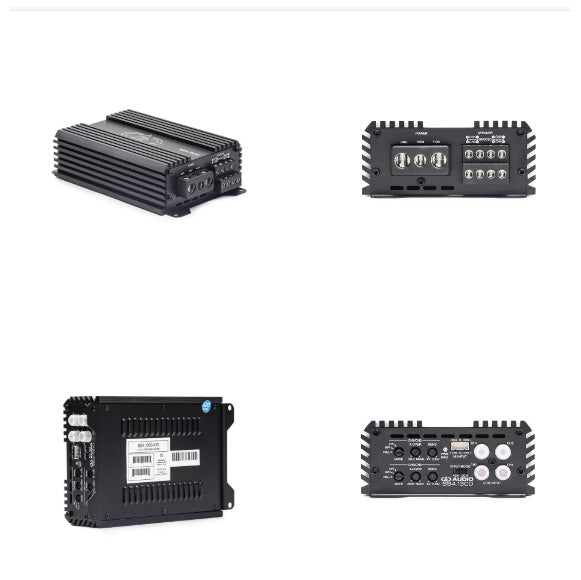

SS4.1300: 1300 Watt – 4 Channel Amplifier

The new SS4.1300 brings next level power to the multi-channel wing of the SS Series amplifier line-up. With nearly 200 watts per channel at 4 Ohms and over 325 Watts at 2 Ohms, these compact amps will drive pro audio and motorcycle systems to new extremes with exceptional sound quality.

The SS amplifiers quickly earned a reputation for big clean power from a small package. Their high speed, high current class D designs offer high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink provides max cooling thanks to 50% more side wall thickness than industry norms with extra long fins to increase surface area. As with all DD amps, all major components are name brands; use higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability.

These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is physically tangible and audibly undeniable.

Features

• High Level Inputs
• 12dB/Oct High Pass/Low Pass X-Overs
• Heavyweight DD Aluminum Chassis
• Set Screw Power and Speaker Terminals
• 4 AWG Power Terminals

Specifications

• Frequency Response (Hz):20 – 20k
• Operating Voltage:9 – 16
• Test Voltage:14.4
• Input Channel:4
• Output Channel:4
• Total Wattage:1300
• Continuous Wattage @ 4Ω:180 x 4 / 650 x 2
• Continuous Wattage @ 2Ω:325 x 4
• Max Current Draw:150
• RCA Input Voltage Sensitivity:6 – 0.25
• High-Level Input Voltage Sensitivity:20 – 1.1
• RCA Input S/N:> 95
• Damping Factor:> 100
• THD:< 1.0%
• High-Pass Filter;20 – 5k
• Low-Pass Filter:50 – 20k
• Power Wire Gauge In:4
• Speaker Wire Gauge Out:14
• Dimensions (In):6.25 x 4.6 x 2
• Dimensions (MM):159 x 117 x 50
