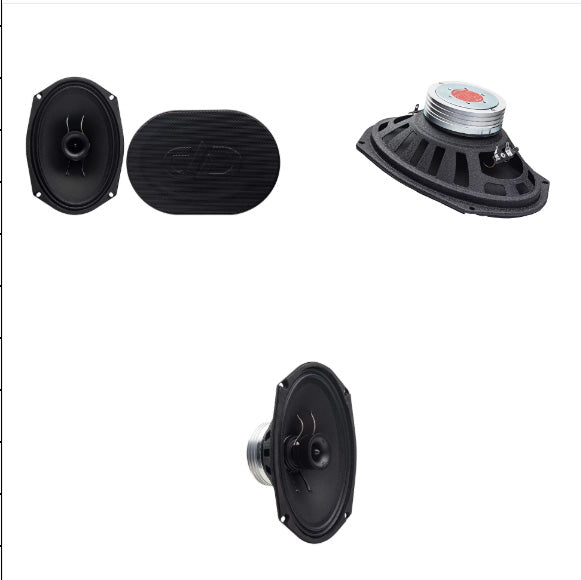

VO-XN369: 250W – 500W – 6×9 Inch Coaxial Neo Speaker

The VO-XN300s continue the tradition of blending the latest in Hi-Fidelity technology with the qualities of high-end Pro Audio to produce a tonally smooth, low distortion frequency response over a wide bandwidth through an undeniably powerful broadcast to give listeners near and far a gratifying interaction with loud and clear audio. These 6″ x 9″ combination drivers can cover frequencies as low as 65Hz all the way up to 20kHz, making system designs easy. They also feature key upgrades over the VO-XNa drivers. The Neodymium motor was made larger to accommodate the new voice coil, which increased to 1.8” for a 25% greater total area, resulting in substantially improved power handling and output capability. This stronger motor is complemented by the introduction of the 4th Gen B1 compression driver, made with a smaller all aluminum body.

They also include exclusive adventure ready design features, like sealed voice coil gaps and water resistant, synthetic resin cones made for unyielding rigidity and ultra-light moving mass, all to overcome the harsh conditions and environmental noise you’ll encounter on road and off.

Features

• Dual Magnet Neo Motor Design w/ Dual Shorting Rings
• 25% Increase In Voice Coil Size
• Machined Aluminum Front and Rear Motor Heatsinks
• Kapton Voice Coil Former for Decreased Inductance
• DD Tooled 4th Gen Neo Magnet Compression Tweeter
• Moisture Resistant Polymer Infused Curvilinear Cone
• Rubber Voice Coil Gap Cover
• CCA Voice Coil Wire for Increased Efficiency
• Bi-Ampable

Specifications

• Speaker Size (In):6 x 9
• Tweeter Size (In):1
• Watts RMS:250
• Peak Power:500
• VCD (In):1.8
• Voice Coil Impedance:S2 / S4
• Frequency Response (Hz):65 – 20k
• dBSPL:96
• Tweeter dBSPL:104
• Fs (Hz):65
• Qms:10.644
• Qes:0.764
• Qts;0.713
• Vas (Ltr):14.368
• Mounting Diameter (In):8.7 x 5.9
• Mounting Diameter (MM):220 x 150
• Mounting Depth (In):3
• Mounting Depth (MM):77
